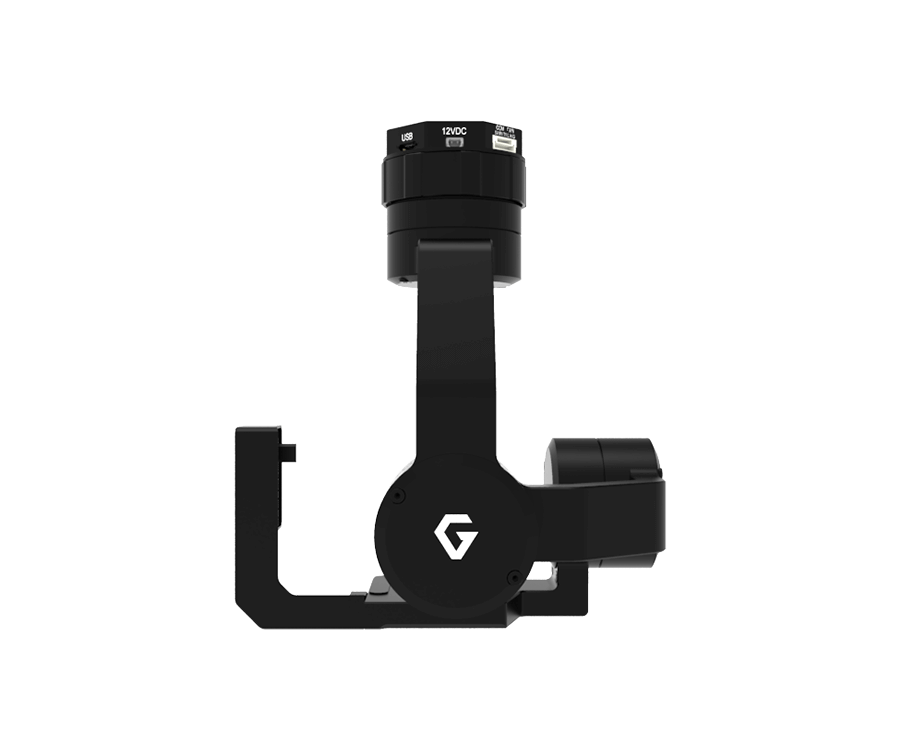

Gremsy Pixy F

Lightweight and small gimbal

Pixy is a new generation of small form factor gimbals, packing the power of current technology into a module that fits perfectly in the palm of your hand.
This compact gimbal offers an optimized size and weight for longer flight times.

HDMI Hyper Quick Release

PixyF's HDMI Hyper Quick Release allows for quick and easy assembly across a variety of platforms via high-speed connector pins, while the onboard HDMI and AUX ports allow live signal transmission from cameras for direct monitoring and evaluation.

No balancing required

Built for the specific camera on the tray, there's no balancing or adjustment required for the fastest setup time possible - just snap it in and you're done.

Start-up time of less than 2 seconds

The new absolute encoder allows for a 2-second start-up time and provides accurate house detection even in vibration environments.

Compatible with PIXHAWK

Pixy F is fully compatible with Pixhawk and synchronizes attitude.
*Currently, PIXYF is not compatible with the FlirDuo ProR with a 25mm lens.

*The included items may change without notice depending on the manufacturer's discretion.

	Single unit	Bundle for M600
PIXY F set	○	○

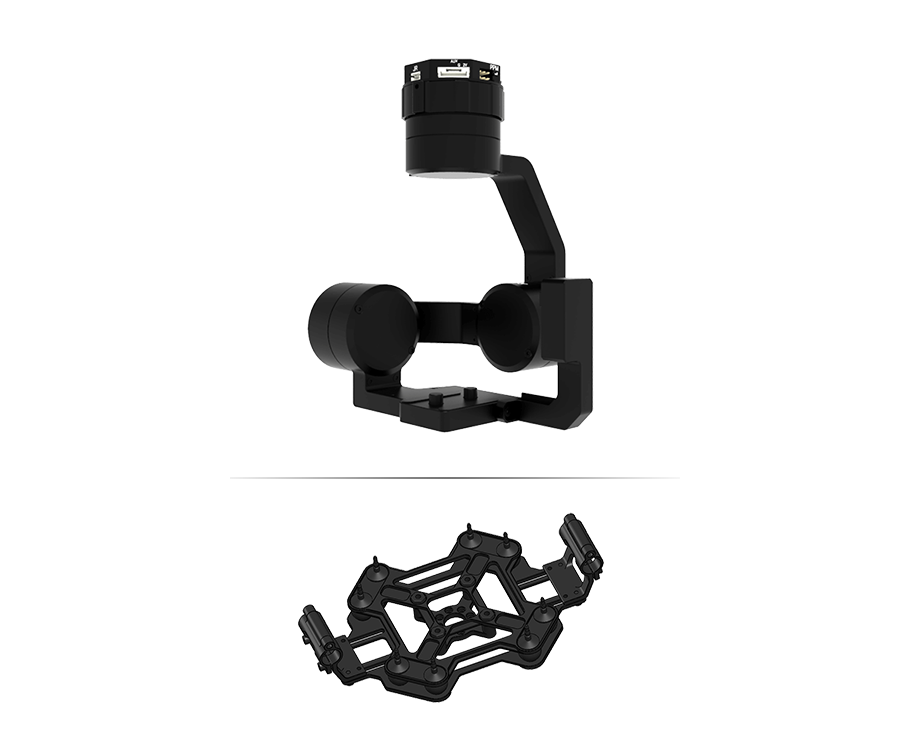

PIXY F Damping	/	○

Contents of the PIXY F set

• PIXY F x1
• PIXY Quick Release x1
• PIXYUBEC power cable x1
• PIXY-Standard Auxiliary Cable 8-pin x1
• PIXY Cable for DJI FC (A3, N3) x1
• PIXY Cable for Pixhawk x1
• Micro USB cable x1
• USB cable x1
• Camera screws x2
• 2mm hex wrench x1
• Bolt Hex Socket M2.5x5 x5
