High-resolution full-frame mirrorless single-lens camera α and a variety of lenses to choose from
It can be equipped with a camera and lens suitable for inspections and other applications that require high resolution.
*For still image shooting. Not suitable for video shooting.
Lightweight design allows for a flight time of 20 minutes*
* When combined with LBP-HM1, RTK-1, ILCE-7RM4A, and SEL35F28Z, at sea level, no wind, and a cruising speed of 9 m/s
Supports high-precision imaging suitable for industrial use
By mounting the camera on a dedicated bracket, the yaw direction is fixed in the correct direction, reducing the impact on accuracy. Drift is also reduced by using information sent from the aircraft to estimate the gimbal's attitude. Furthermore, by using it in conjunction with the separately sold RTK GNSS receiver "RTK Kit (RTK-1)," highly accurate location information can be recorded by offsetting the position information onto the camera's imaging plane and acquiring position information synchronized with the shutter signal.
Simple mechanism that reduces setup time

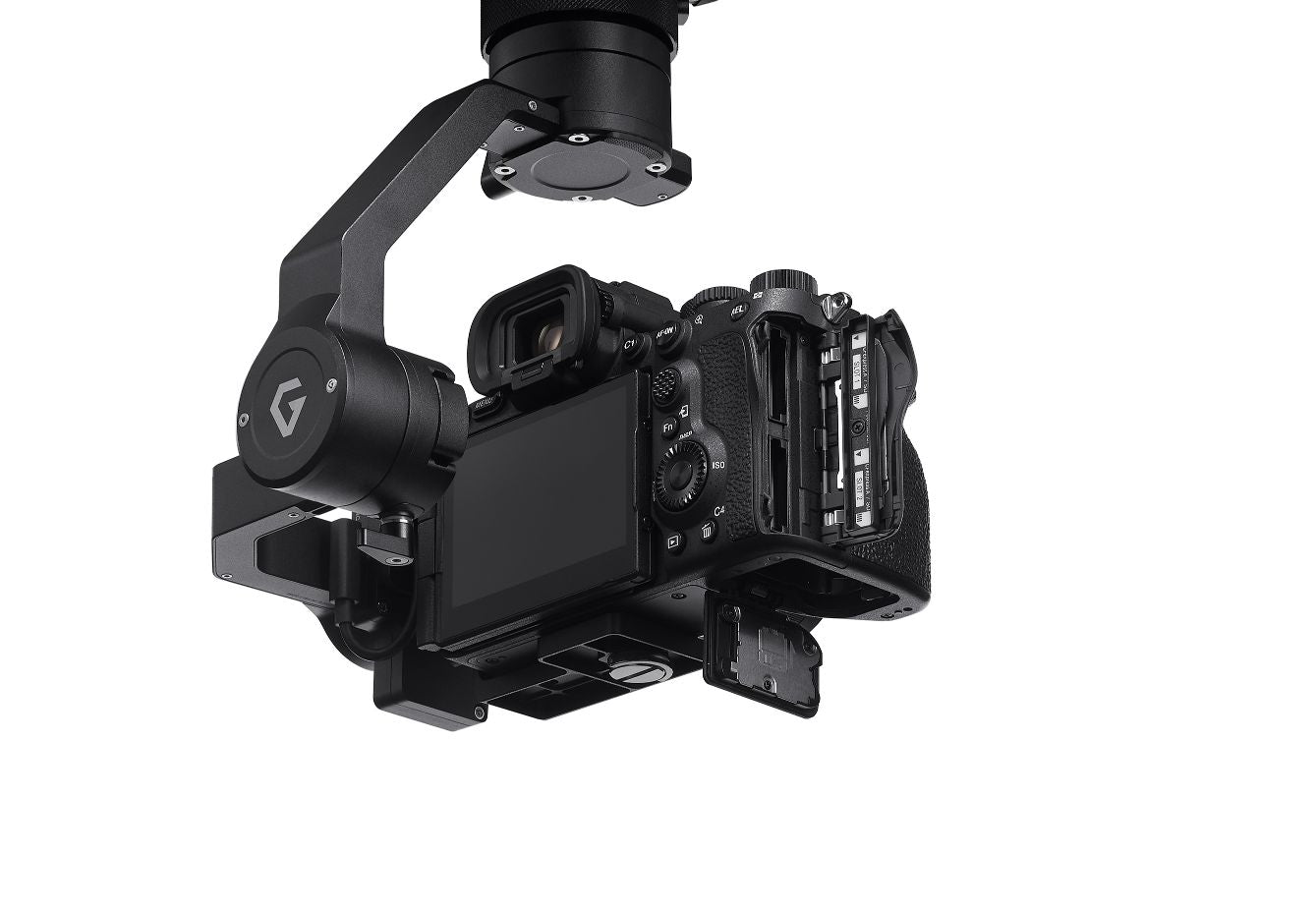

Only one part needs to be operated when attaching a camera. Fewer mechanisms require center of gravity adjustment compared to the GBL-T3 gimbal, shortening setup time. Convenient scales are provided for adjustment of each axis. The design also prevents interference with the camera's battery or memory card slot, allowing for replacement without removing the camera from the gimbal. The Airpeak Flight mobile app also offers gimbal parameter presets.
Specifications
| size |
| External dimensions |
Approximately 128mm x 210mm x 151mm (including quick release) |
| mass |
| mass |
Approximately 563g (approximately 823g with damper plate and cable attached) |
| Range of motion |
| Mechanical Range |
Pan: ±328°
Tilt: +50° to -140°
Roll: +50° to -290° |
| Controllable Range |
Pan: ±320°
Tilt: +45° to -135°
Roll: ±45° |
| User operable range |
(When combined with Airpeak S1) Pan: ±320°
Tilt: ±45° to -115°
Roll: ±25° |
| Control Speed |
| Maximum Control Speed |
Pan: 180°/s
Tilt: 180°/s
Roll: 180°/s |
| Maximum control speed (when combined with Airpeak S1) |
Pan: 180°/s
Tilt: 135°/s
Roll: 150°/s |
| Contents |
| Contents |
Gimbal x 1, Damper plate (with quick release) x 1, Micro USB cable x 1, Hex screws x 10 (including 2 spares), Hex wrench x 1, Quick release cover x 1 |
