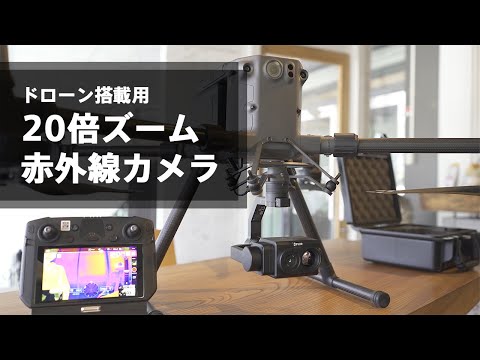

20x infrared zoom for situational awareness
A wide field of view allows you to cover large areas in a single flight, while enhanced image detail allows you to focus in on targets with 1x-20x zoom.

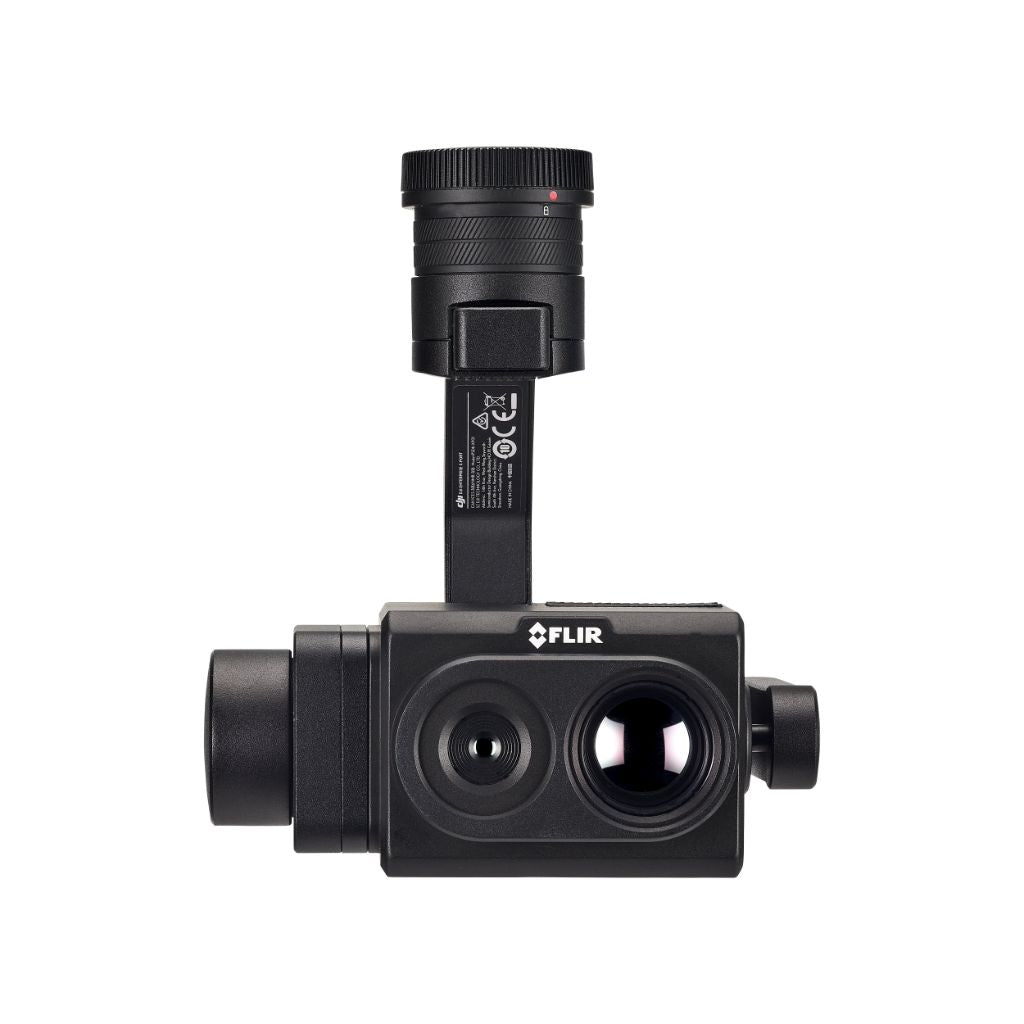

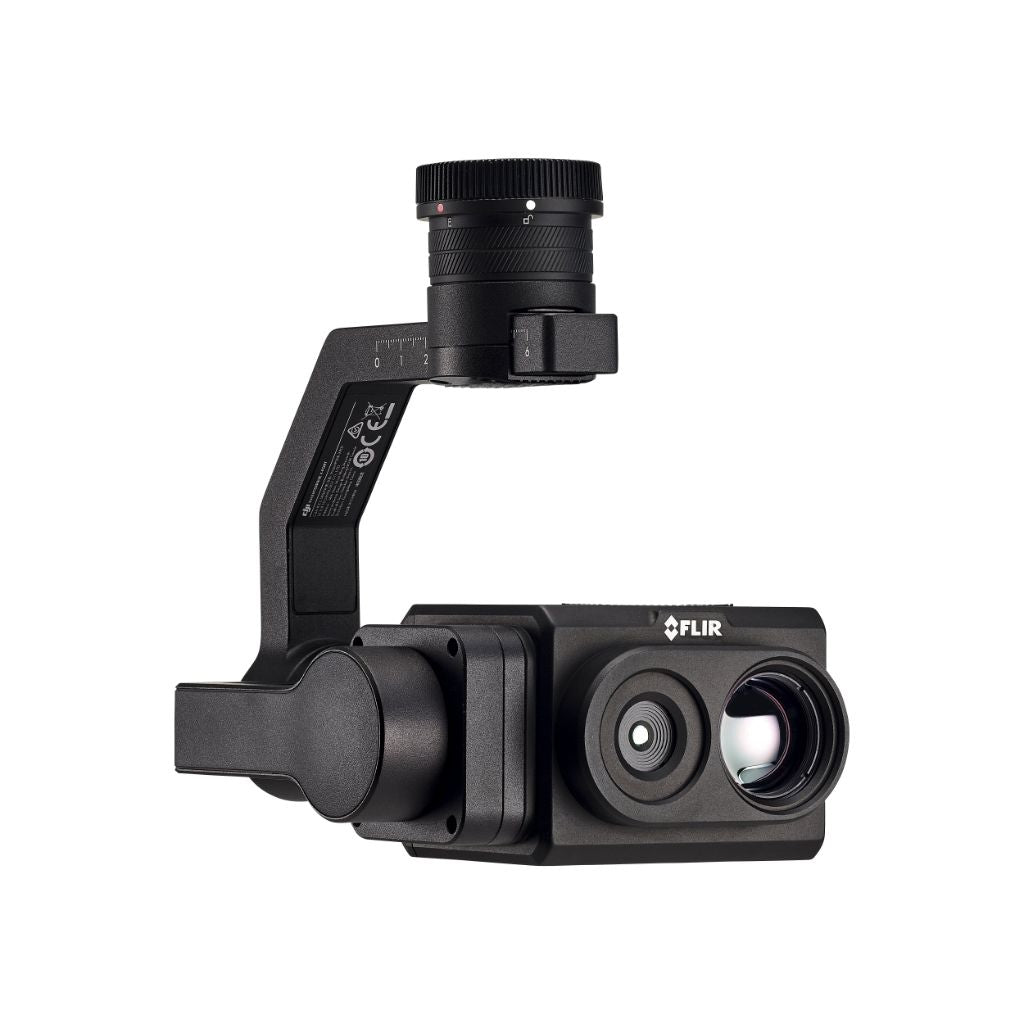

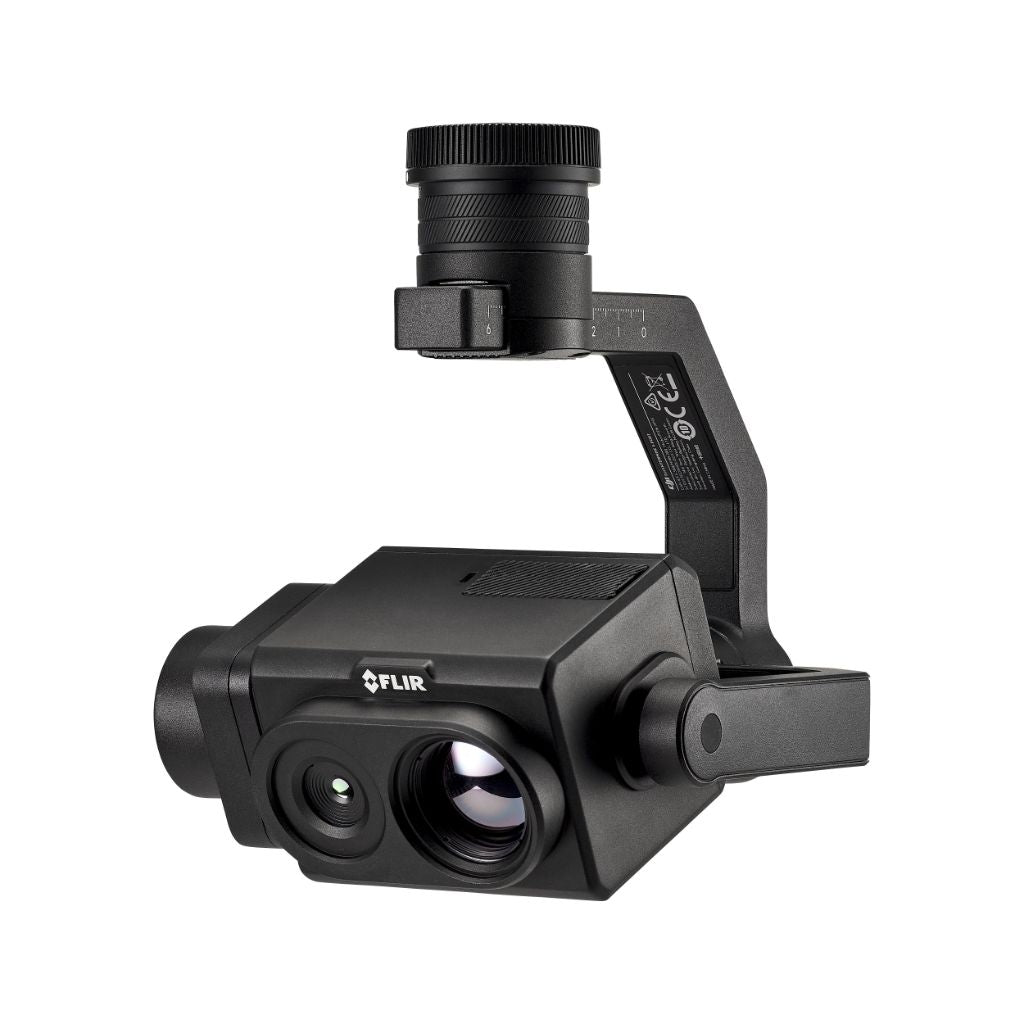

High-resolution FLIR BOSON dual cameras
The factory calibrated 640 x 512 pixel Boson dual thermal camera features scalable 30Hz thermal video recording.

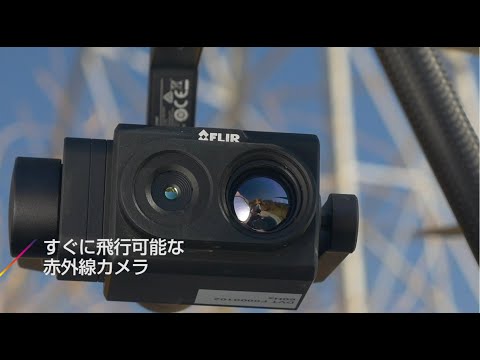

Ready to fly right after purchase

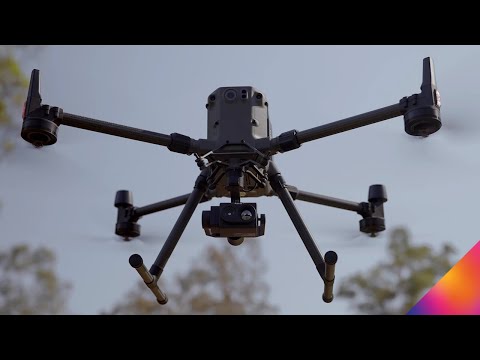

Plug-and-play model quickly connects with Skyport V2.0 gimbal and DJI M200 Compatible with V2 series and M300 aircraft.
| overview |
| Compatible models |
DJI Matrice 200 V2 series, DJI Matrice 300 |
| Apps used |
DJI Pilot App |
| zoom |
5x optical (WFOV/NFOV), 4x digital Effective zoom: 1x (95°), 5x, 10x, 20x (4.5°) |
| Pixel Pitch |
12µm (LWIR) |
| Temperature resolution |
85 mK @ F/1.0 |
| weight |
640g |
| size |
Payload: 75 x 70 x 55mm With gimbal: 128 x 154 x 141mm |
| OTHER |
| Gimbal |
3-axis Pitch: 30° to 120° Yaw: ±270° |
| Imaging and Lenses |
| IR Camera Optics |
Wide FOV: 95° HFOV, 4.9mm EFL
Narrow FOV: 18° HFOV, 24mm EFL |
| Array Format |
Two Bosons (640 x 512 pixels) |
| Streaming Video |
640 x 512 @ 25 Hz |
| Meter Data |
| Recording |
Still: Radiometric JPEG, JPEG, raw TIFF Periodic capture 1s – 30s interval, all still image formats Video •MPEG 25Hz (zoomed) • Radiometric CSQ 5Hz (zoomed) • Raw multipage TIFF 10Hz (wide and narrow FOV separate) |
| Environment and Certification |
| Waterproof standard |
IP44 |
| operating temperature |
Operating temperature: -20° to 45°C (-4° to 113°F)
Storage temperature: -20° to 60°C (-4° to 140°F) |
| Tested EMI performance |
FCC part 15 Class B |
| Data storage |
Two micro SD cards (two 64GB included)
*Supports 2x256GB |
| Electrical and Mechanical Equipment |
| Mechanical Interface |
Skyport 2.0 connector, X-Port DJI gimbal |
| power supply |
| Power Interface |
Skyport 2.0, 13.6V/2A |
| Power consumption |
Normal time <8W |
*Exporting this product overseas is regulated by the Foreign Exchange and Foreign Trade Act (Foreign Exchange Act). Prior permission from the Japanese government is required for export.
*This product and related technical data are controlled for export by the U.S. Department of Commerce (USDOC). An export license must be obtained from the USDOC prior to export, re-export, or retransfer of this product outside the United States or Canada.
