Description

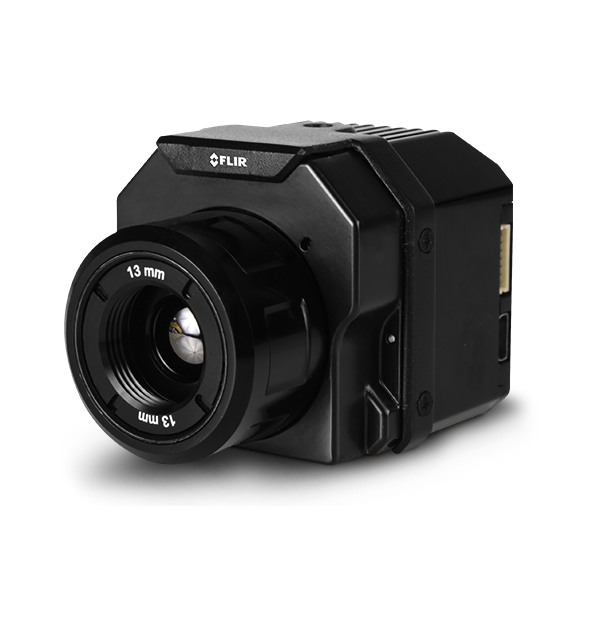

General-purpose radiometric infrared camera for drones
The Vue Pro R enables drone pilots and certified thermographers to take accurate, non-contact temperature measurements from the air. Every image stored by the Vue Pro R contains accurate, calibrated temperature data embedded in every pixel, adding unprecedented value to your drone operations and services. The Vue Pro R collects a full range of radiometric data for a variety of drone operations, including building and roof inspections, power grid inspections, infrastructure analysis, precision agriculture, and public safety.
Calibrate radiant infrared measurements
The Vue Pro R is more than just an infrared camera: it takes accurate, non-contact temperature measurements from the air and stores images with calibrated temperature data embedded in every pixel.
MAVLINK integration and PWM control
In addition to being compatible with MAVLink for image geotagging, the accessory port can be connected to a drone's control system to control camera functions during flight.
Easy to configure
The FLIR UAS app allows for easy configuration, allowing you to set color palettes, image optimization features, PWM inputs, and more without having to take a computer with you on the road.
| ELECTRICAL | |
| Power loss [peak] | 2.1W (3.9W) |
| Input voltage | DC 4.8 to 6.0 V |
| ENVIRONMENTAL & APPROVALS | |
| Operating temperature range | -20℃ to +50℃ |
| Usage altitude | +40,000 feet |
| Non-use temperature range | -55℃ to +95℃ |
| MECHANICAL | |
| size | 2.26" x 1.75" (including lens) |
| zoom | Yes – Adjustable via application or PWM |
| weight | 92.1 to 113.4g (depending on configuration) |
| Precision Mounting Holes | Two M2 x 0.4 screws on each side and bottom, one 1/4-20 screw hole on top |
| Imaging and Lenses | |
| Color Palette | Yes – Adjustable via application or PWM |
| Scene presets, image processing | Yes – Adjustable depending on application |
| Spectral band | 7.5 to 13.5 µm |
| Sensor resolution |
640x512 - 19mm - 30Hz｜640x512 640x512 - 13mm - 30Hz｜640x512 640x512 - 9mm - 30Hz｜640x512 |
| Full Frame Rate | 30 Hz (NTSC); 25 Hz (PAL) |
| Lens Options |
640x512 - 19mm - 30Hz | 19 mm; 32° x 26° 640x512 - 13mm - 30Hz | 13mm; 45° x 37° 640x512 - 9mm - 30Hz | 9mm; 69° x 56° |
| Lens options [NTSC analog output viewing angle] |
640x512 - 19mm - 30Hz | 19 mm; 32° x 24° 640x512 - 13mm - 30Hz | 13mm; 45° x 35° 640x512 - 9mm - 30Hz | 9mm; 62° x 49° |
| Image Optimization - sUAS | ○ |
| Thermal imaging device | Uncooled VOx Microbolometer |
| Invertible images | Yes – Adjustable depending on application |
| Optional power supply and HDMI video module | |
| HDMI output | 1280x720 @ 50hz, 60hz |
| Reverse polarity protection | ○ |
| Input Power Range | DC5 to 28V |
| performance | |
| Measurement accuracy | +/- 5°C or 5% of reading |
| Connectivity and Communication | |
| Analog Video Output | ○ |
*Exporting this product overseas is regulated by the Foreign Exchange and Foreign Trade Act (Foreign Exchange Act). Prior permission from the Japanese government is required for export.
*This product and related technical data are controlled for export by the U.S. Department of Commerce (USDOC). An export license must be obtained from the USDOC prior to export, re-export, or retransfer of this product outside the United States or Canada.
