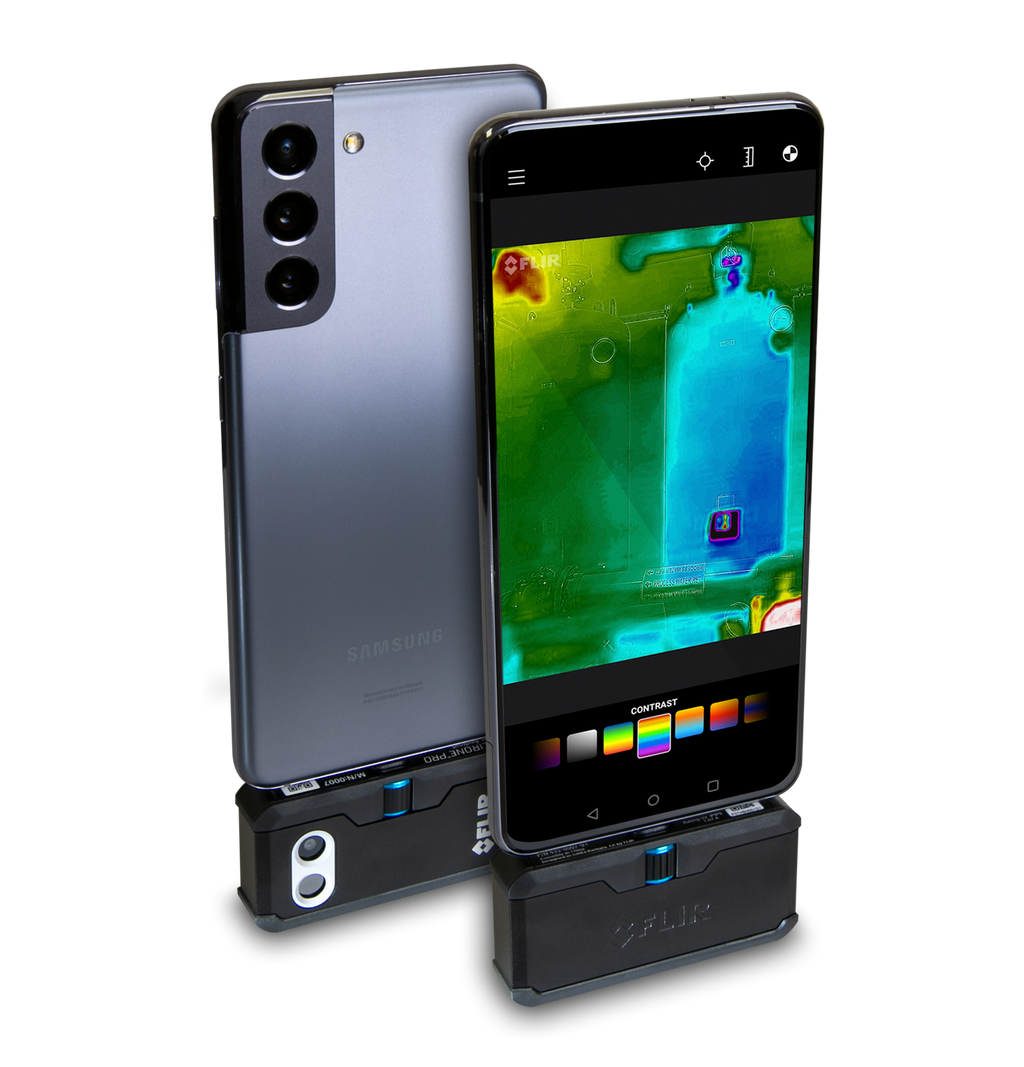

FLIR ONE Pro

Professional infrared module for smartphones

Image detail and clarity

FLIR ONE Pro features 4x better thermal resolution and VividIR™ image processing, so you can see details when it matters most.

Expanded measurement capabilities

With up to three spot thermometers and six temperature zones, it can measure temperatures from -20°C to 400°C.

Field durability

Designed to withstand everyday field work, the FLIR ONE Pro is built to last, with a 1.8m drop rating.

<Product warranty>

Due to the product specifications, FLIR ONE PRO cannot be repaired, the built-in battery cannot be replaced, temperature calibration cannot be performed, or a traceability certificate cannot be issued, regardless of whether this is paid or free of charge.

Products with serial numbers shipped to Japan, with proof of purchase that the product was purchased in Japan within the past year, and with user registration within 30 days of purchase, are eligible for a one-year product warranty from the date indicated on the proof of purchase only if the manufacturer acknowledges a product defect.

If the above conditions are not met, or if the product is physically damaged after use, regardless of whether it is caused intentionally or accidentally, the product warranty will not apply.

Please note that even in the case of initial defects, user registration is required within 30 days of purchase, so please do not forget to register.
Please refer to the instruction sticker attached to the side of the product for specific registration instructions.

overview
accuracy	±3°C or ±5%, typical percent difference between ambient and scene temperatures. Applicable for 60 seconds after start-up when unit is within 15°C to 35°C range and scene is within 5°C to 120°C range
Temperature when not in use	-20℃ to 60℃
Scene Dynamic Range	-20℃ to 400℃
Spot meter	Off / ℃ / °F. Resolution 0.1℃ / 0.1°F
weight	36.5g
Dimensions [H x W x D]	68 x 34 x 14mm
App
MSX distance adjustable	0.3m to infinity 1
Battery Charge Monitor	0 to 100%
Acquisition Mode	Video, stills, time lapse
File Format	Still image - JPEG with temperature information
palette	Gray (White Hot), Hottest, Coldest, Iron, Rainbow, Contrast, Arctic, Lava, Wheel
Video/still image display capture	Save as 1440x1080
Imaging and Lenses
focus	Fixed 15cm to infinity
Frame rate	8.7Hz
overview	Thermal and visual cameras using Super Fine Contrast (MSX®)
Horizontal viewing angle/vertical viewing angle	55° ± 1° / 43° ± 1°
shutter	Automatic/Manual
Thermal Image Resolution	160x120
thermal sensor	12µm pixel size, 8-14µm spectral range
Image resolution	1440x1080
power supply
Battery charging time	40 minutes
Battery life	Approximately 1 hour
Radiation Measurement
Temperature resolution [MRDT]	70 mK
