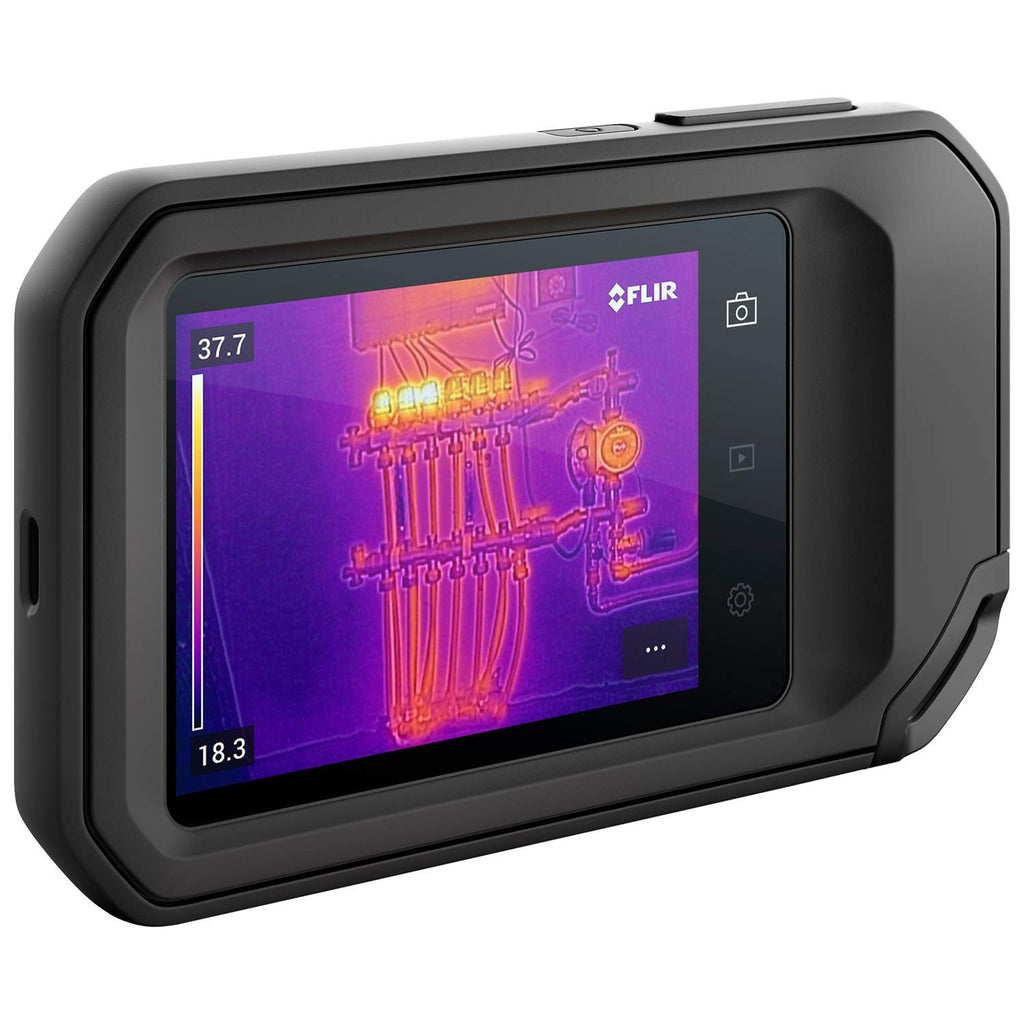

The pocket-sized FLIR C5 makes it easy to spot hot fuses, air leaks, plumbing issues, and more. Equipped with a professional-grade thermal imaging camera with 160x120 (19,200 pixel) resolution, a 5-megapixel digital camera, and an LED flashlight, the C5 makes it easy to identify hidden problems. The C5 also uploads and stores images directly to the FLIR Ignite cloud service, where you can organize and back up your image files. You can then instantly share images with customers or create reports documenting the problem and repairs.
Discovery and Troubleshooting
Multispectral Dynamic Imaging (MSX), a 160x120 pixel thermal camera, and one-touch level span controls allow you to quickly find hidden faults and reduce diagnostic time.
Record and share
Cloud Services Upload images directly to FLIR Ignite and create professional reports to email to your customers
Reliable, rugged and compact
With IP54 dust and water protection and a 2m drop resistance, the C5 is the perfect tool for any operator.
Wi-Fi connection to the FLIR Ignite cloud service allows for quick data recording, sharing, and inspection.
FLIR Ignite cloud services increase your team's efficiency and productivity. Upload, organize, and share images directly from the FLIR C5 to FLIR Ignite via Wi-Fi. Store your data securely in one place and easily access it from any device.
| overview |
| accuracy |
At an ambient temperature of 15 to 35°C and an object temperature of 0°C or higher, 0 to 100°C: ±3°C, 100 to 400°C: ±3% |
| Object temperature range |
20 to 400°C |
| Infrared sensor |
160 x 120 (19,200 pixels) |
| Touchscreen |
Capacitive |
| Screen Rotation |
Yes |
| FLIR Screen-EST Mode |
No |
| Imaging and Lenses |
| Color Palette |
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| digital camera |
5MP |
| digital camera focus |
Fixed focus |
| focus |
Focus Free |
| Gallery |
Thumbnails and custom folder structures |
| Image Adjustment |
Auto level/span, manual level/span, One Touch level span |
| Camera Frequency |
8.7Hz |
| Image Mode |
Thermal, visual, MSX (visual detail overlaid on thermal image), Picture-in-Picture (thermal image over visual image) |
| minimum focal length |
Thermal image: 0.1m, MSX: 0.3m |
| Spectral range |
8 to 14 µm |
| Meter Data |
| Camera size [L x W x H] |
138 × 84 × 24mm |
| environment |
| Drop test |
2m |
| protection |
Camera housing and lens: IP54 (IEC 60529) |
| Operating temperature range |
-10 to 50°C |
| Storage temperature range |
-40 to 70°C |
| Tripod mounting mount |
UNC ¼”-20 (built-in) |
| Connectivity and Communication |
| Bluetooth |
PAN |
| Storage Media |
Internal memory and on-board FLIR Ignite cloud connectivity (via Wi-Fi) |
| USB |
USB 2.0, Type-C connector |
| Wifi |
802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Image Upload |
Directly upload images to FLIR Ignite cloud library and services |
| measurement analysis |
| Measurement value correction |
Emissivity correction (matt/semi-matt/semi-gloss + custom value), reflected apparent temperature correction, atmospheric correction |
| Temperature resolution |
<0.07℃ |
| Measurement Functions |
Spot, Box with max./min. |
| power supply |
| Battery life |
4 hours |
| Battery Type |
Built-in rechargeable lithium-ion battery |
| charging device |
USB-C (1A) |
| Charging time |
2 hours |
| External power supply operation |
5V, USB-C |
| physical properties |
| Screen Size |
3.5 inches |
| Weight (including battery) |
0.19 kg |
| Storage Media |
| File Format |
Standard JPEG, includes 14-bit measurement data |
| Image saving |
Approximately 5,000 sheets |
