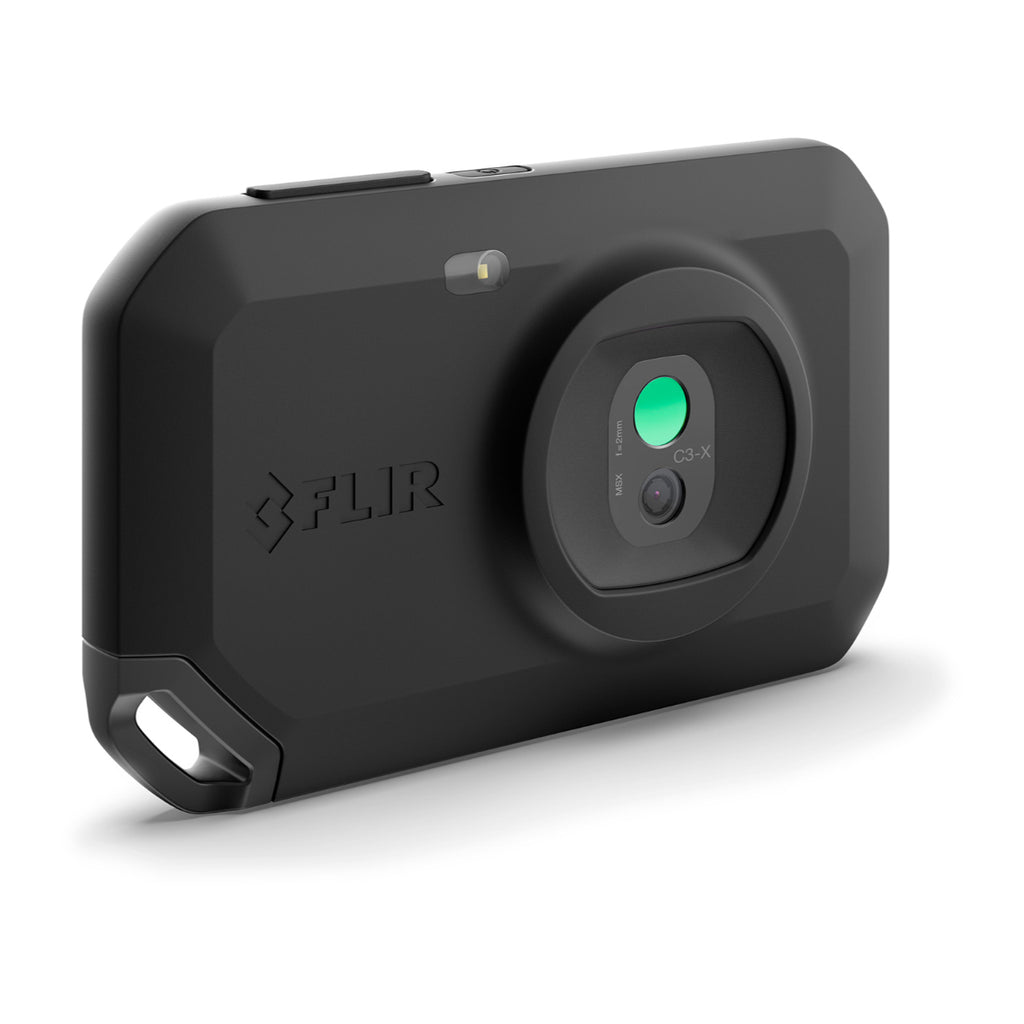

FLIR C3-X

Name: FLIR C3-X
Brand: FLIR
SKU: 90501-0201
Price: 109780 JPY
Availability: InStock

FLIRSKU: 90501-0201

Price:

¥109,780

Tax included Shipping calculated at checkout

Stock:

Re-stocking soon

Quantity:

Share this product

The FLIR C3-X makes it easier than ever to find hidden problems, document repairs, and share evidence with customers. Featuring a 128x96 pixel infrared sensor, a Super Fine Contrast (MSX) 5-megapixel visible camera, and an LED flashlight, it's an affordable inspection tool ideal for electrical/mechanical, architectural, and maintenance applications. Images can be uploaded and stored directly to the FLIR Ignite cloud service, where you can also organize and back up your image files. Instantly share images with customers and create professional reports from your mobile device or computer.

Discovery and Troubleshooting

Super Fine Contrast (MSX) and a full-scale 128 x 96 pixel thermal imaging camera quickly detect hidden faults and reduce diagnostic time.

Record and share

Cloud Services Upload images directly to FLIR Ignite and create professional reports to email to your customers

Reliable, rugged and compact

With IP54 dust and water protection and a 2m drop resistance, the C5 is the perfect tool for any operator.

Wi-Fi connection to the FLIR Ignite cloud service allows for quick data recording, sharing, and inspection.

The pocket-sized C3-X is waterproof and dustproof with an IP54 rating and can withstand drops up to 2 meters, making it portable for any workplace.

overview
Screen Rotation	Yes
Camera size [L x W x H]	138 × 84 × 24mm
Size [L x W x H]	138 × 84 × 24mm
Touchscreen	Capacitive
Display Technology	IPS
text	Soft keyboard on touchscreen
Housing Material	PC-ABS, partially coated TPE, aluminum
Detector Type	Focal Plane Array (FPA), Uncooled Microbolometer
Packing size	160 x 118 x 93mm
OTHER
Battery regulations	UL 1642, EN 62133 2nd Edition
Imaging and Lenses
F-stop	1.1
Aspect Ratio	4:3
Auto Orientation	Yes
Camera Software Update	Automatic updates via Wi-Fi, updates via USB from PC devices
Camera Frequency	8.7Hz
Color Palette	Iron, Gray, Rainbow, Rainbow HC
Gallery	Thumbnails and custom folder structures
Spectral range	8-14 m
Display resolution	640 x 480 pixels
digital camera	5MP (resolution)
Digital camera viewing angle	71.5° x 56° (diagonal 84°)
digital camera focus	fixed
Digital zoom	Not supported
Video Lamp	Yes
Temperature resolution_NETD	<0.07℃
Image Mode	Thermal, visual, MSX (visual detail overlaid on thermal image), Picture-in-Picture (thermal image over visual image)
Image Adjustment	Auto level/span, manual level/span
Spatial resolution [IFOV]	7.9 mrad/pixel
Detector Spacing	12M (Mu)
minimum focal length	Thermal image: 0.1m, MSX: 0.3m
Viewing angle [FOV]	53.6°
focus	Focus Free
color	black
Infrared Resolution	128 x 96 pixels
environment
Environmental Safety	REACH Regulation EC 1907/2006; RoHS2 Directive 2011/65/EC; WEEE Directive 2012/19/EC; Proposition 65
ETSI\|EMC	EN 301 487-1, EN 301 489-17, FCC 47 CFR Part 15 Class B
safety	EN 62368-1
Tripod mounting mount	UNC 1/4"-20 (built-in)
Operating temperature range	-10 to 50°C
magnetic field	EN 61000-4-8, Level 5
Humidity [during operation, storage]	IEC 60068-2-30/24 hours, 95% relative humidity, 25 to 40°C/2 cycles
impact	25g (IEC 60068-2-27)
vibration	2g (IEC 60068-2-6)
Relative humidity	95% relative humidity, 25-40°C, no condensation
Radio spectrum	ETSI EN 300 328, EN 301 489, FCC Title 47 CFR Part 15, RSS-247 Issue 2
protection	Camera housing and lens: Protection class IP54 (IEC 60529)
Storage temperature range	-40 to 70°C
Drop test	2m
Shipping Information
Packing Weight	0.52kg
Connectivity and Communication
Bluetooth	PAN
Image Upload	Upload images directly to FLIRIgnite cloud libraries and services
USB	USB 2.0, Type-C connector
Wifi	802.11 a/ac/b/g/n (2.4 and 5 GHz)
Storage Media	Internal memory and on-board FLIR Ignite cloud connectivity (via Wi-Fi)
measurement analysis
Measurement Functions	Spot, Box with max./min.
Setup Command	Units, language, date and time format, screen brightness (high/medium/low)
Measurement value correction	Emissivity correction (matt/semi-matt/semi-gloss + custom value), reflected apparent temperature correction, atmospheric correction
language	Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
accuracy	0 to 100°C: ±3°C, 100 to 300°C: ±3% (ambient temperature 15 to 35°C and object temperature 0°C or higher)
Object temperature range	-20 to 300°C
power supply
Battery Type	Built-in rechargeable lithium-ion battery
Battery life	4 hours
Battery charge life	Approximately 500 cycles
Battery charging	BC Title 20, 10 CFR Section 430.23 (aa)
Battery weight	40g
Battery voltage	3.7V
Battery capacity	1800mAh
External power supply operation	5V, USB-C
charging temperature	35℃
Charging time	2 hours
charging device	USB-C (1A)
power management	Standby function and auto power off function can be set
physical properties
Screen Size	3.5 inches
Weight [including battery]	190g
Storage Media
Image File Format	Standard JPEG, includes 14-bit measurement data
Image saving	Approximately 5,000 sheets
