Gremsyジンバル比較
| Pixy SM | Pixy WP | T3 PE | Pixy PE | |
|---|---|---|---|---|
| 寸法 | 147 x 157 x 190mm | 125 x 130 x 165mm | 184 x 237 x 270mm | 170 x 157 x 180mm |
| 重量 | 570g | 465g | 1010g | 470g |
| カメラケージサイズ | Sony α7R Ⅳ 専用 | 85.7 x 38.4 x 64mm | 100 x 152 x 120mm | 65.5 x 100 x 70mm |
| 最大積載重量 | Sony α7R Ⅳ 専用 | 446g | 1700g | 465g |
| 接続端子 | DJI Skyport V2, USB 2.0, UART | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI |
| 搭載可能カメラ | Sony α7R Ⅳ 対応レンズ： SEL28F20 SEL35F28Z SEL55F18Z | Wiris Pro Wiris Agro R | FLIR Duo Pro R | Wiris Security |
| 対応ドローン(フライトコントローラー) | DJI M300 RTK | Pixhawk / Cube Pilot / DJI A3 | Auterion Skynode / Pixhawk / Cube | Auterion Skynode / Pixhawk / Cube |
| 入力 | 14-52V | 14-52V | 14-52V | |
| AUXポート | 6シグナル | 6シグナル | 6シグナル | |
| HDMI対応(Micro HDMI) | ○ | ○ | ○ | |
| ジンバル制御範囲 | Pan: +160° to -160° Tilt: +135° to -45° Roll: ± 25° | Pan: ±330° Tilt: +130°から-45° Roll: ±45° | Pan: ±330° Tilt: ±120° Roll: ±40° | Pan: ±330° Tilt: +130°から-45° Roll: ±45° |
| ジンバル単体 参考価格 | ¥528,000 | ¥341,000 | ¥418,000 | ¥363,000 |
| URL | 商品ページへ | 商品ページへ | 商品ページへ | 商品ページへ |

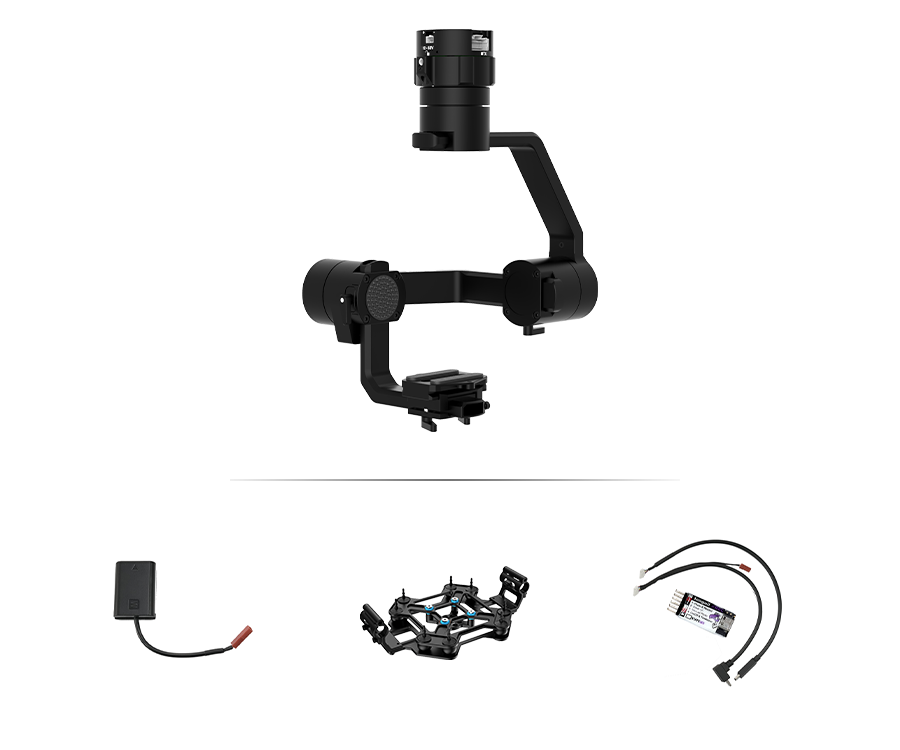

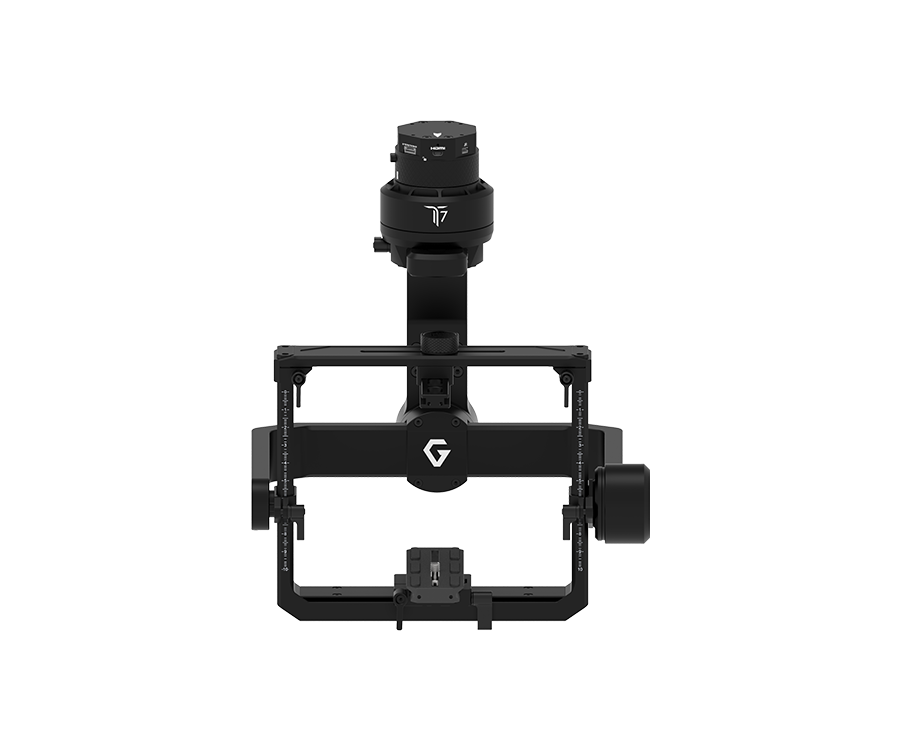

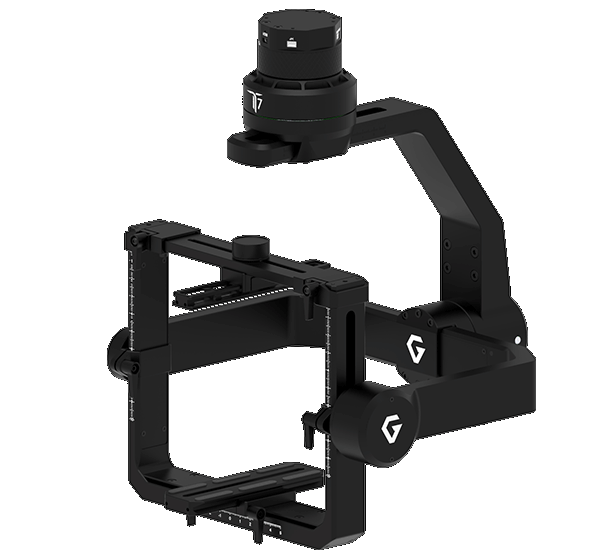

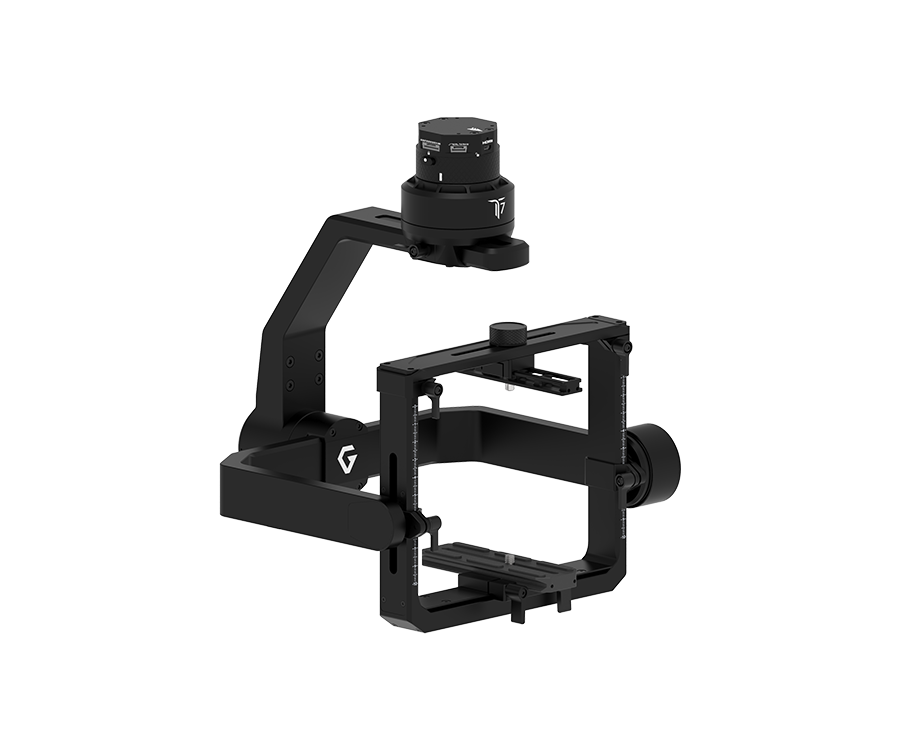

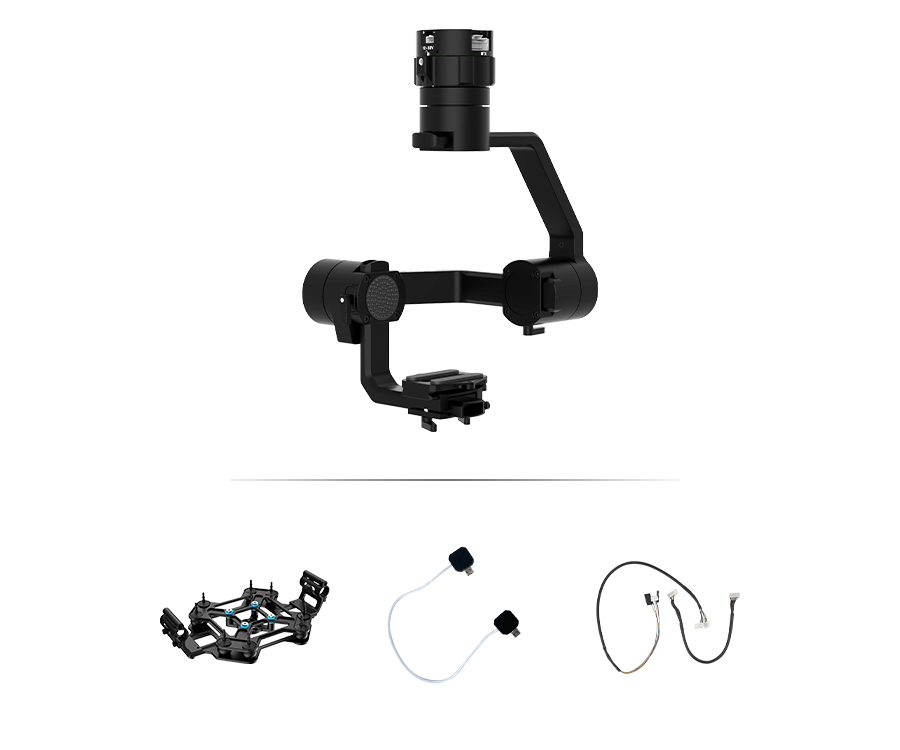

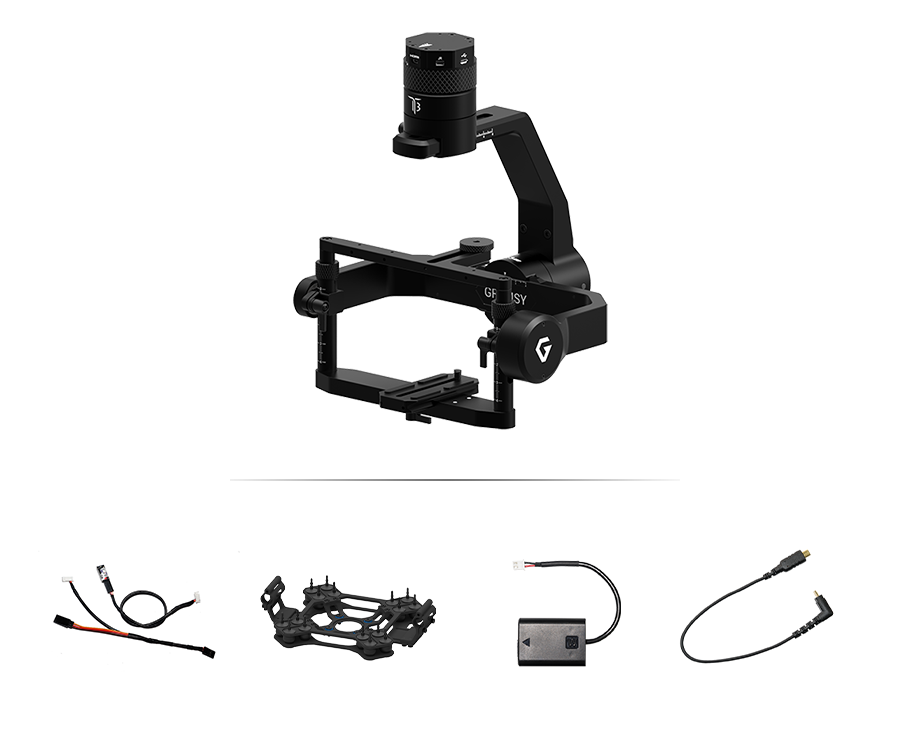

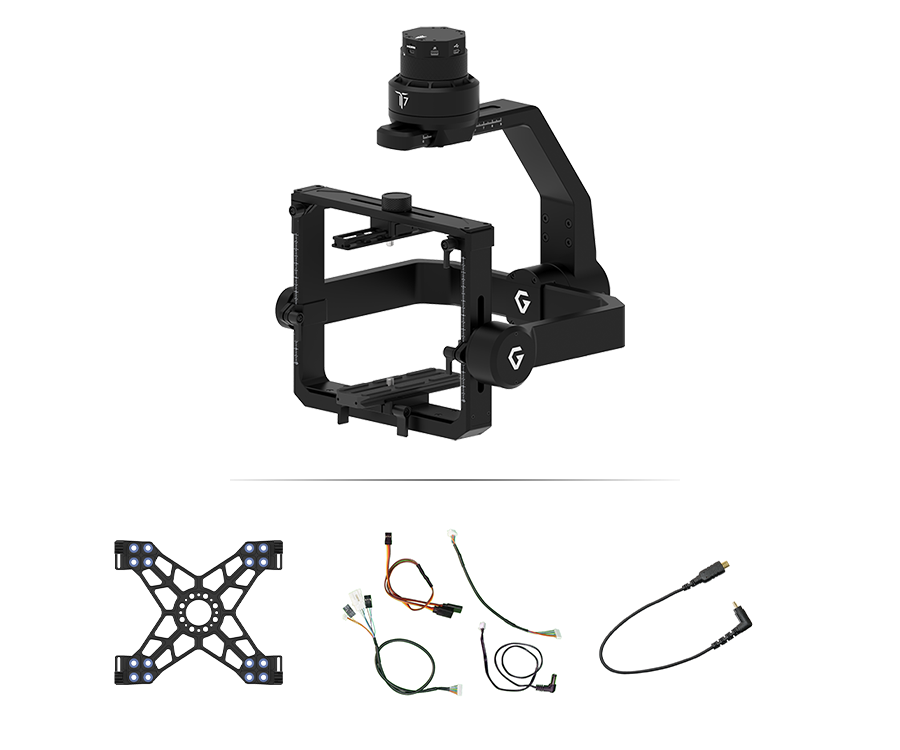

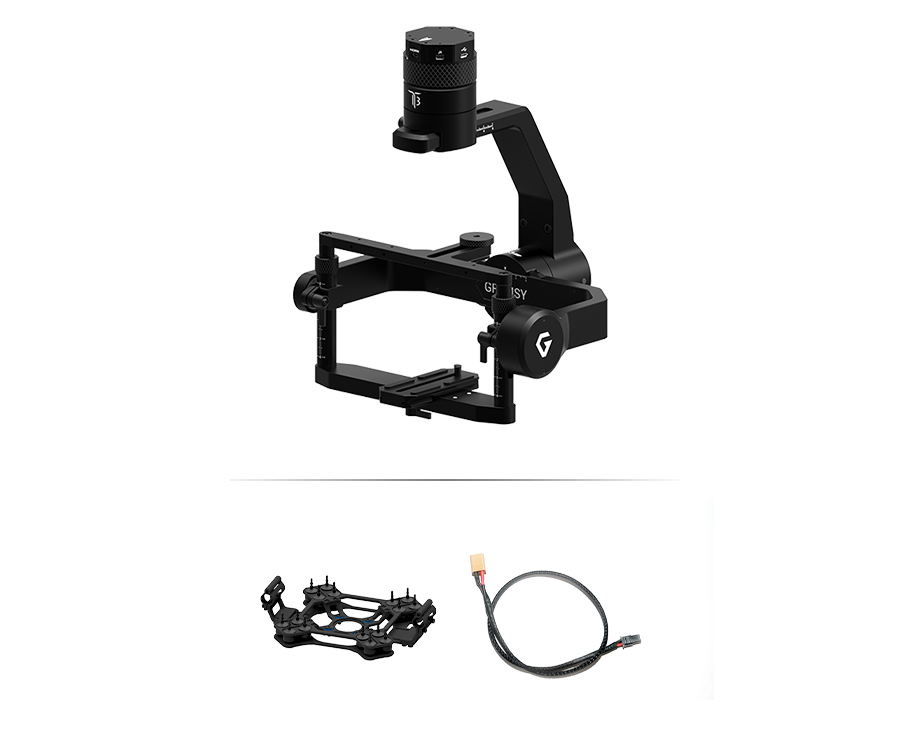

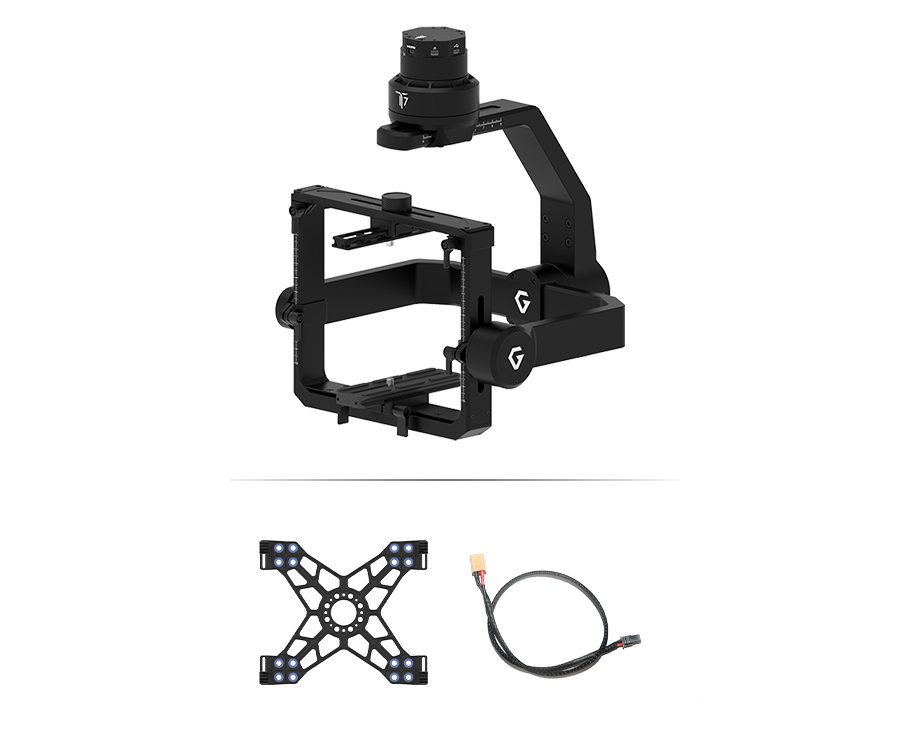

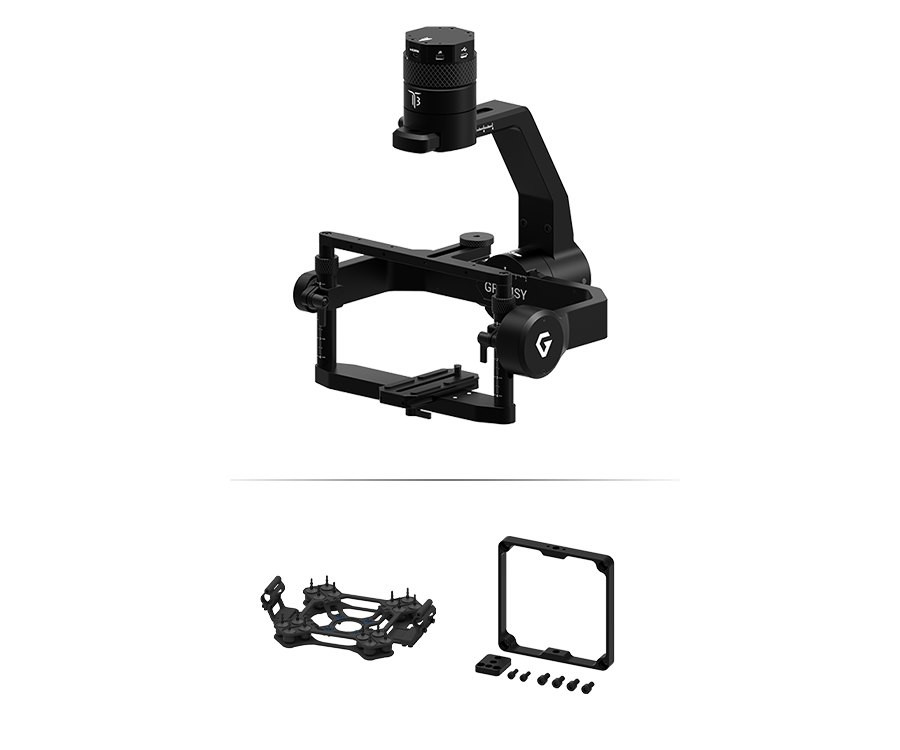

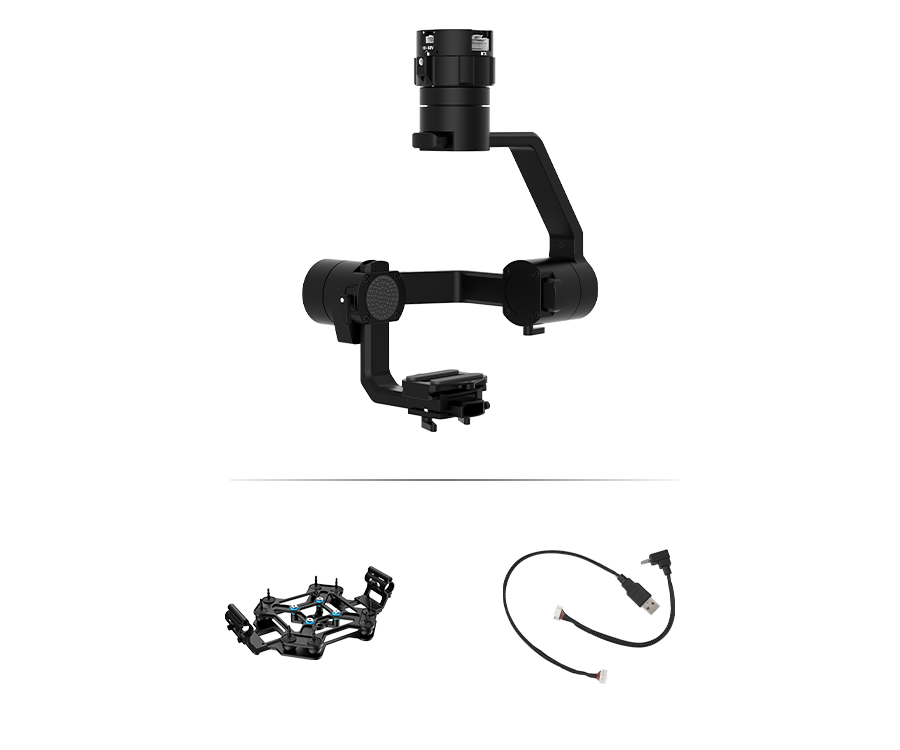

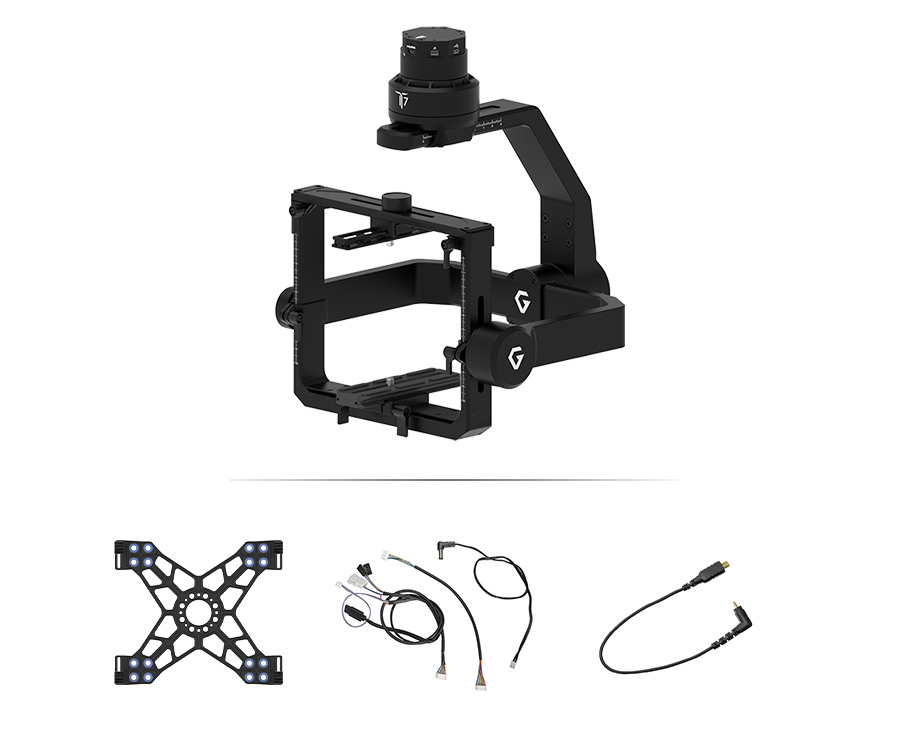

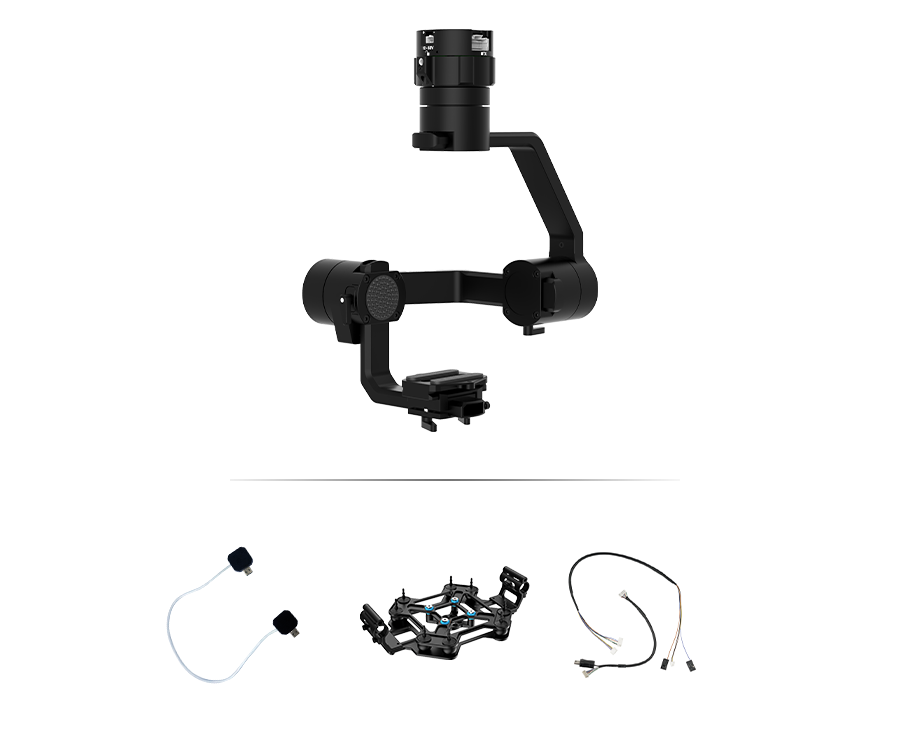

| Mio | Pixy U | Pixy F | Pixy WS | S1V3 | T3V3 | T7 | |
|---|---|---|---|---|---|---|---|
| 寸法 | 120 x 99 x 175mm | 145 x 112 x 200mm | 139 x 132 x 153mm | 170 x 157 x 180mm | 168 x 150 x 220mm | 184 x 237 x 288mm | 253 x 260 x 345mm |
| 重量 | 250g | 465g | 360g | 470g | 830g | 1200g | 1860g |
| カメラケージサイズ | 43 x 85 x 70mm | 65.5 x 100 x 70mm | FLIR Duo Pro R専用 | Wiris Security専用 | 65 x 120 x 75mm | 100 x 152 x 120mm | 150 x 180 x 130mm |
| 最大積載重量 | 400g | 465g | FLIR Duo Pro R専用 | Wiris Security専用 | 750g | 1700g | 3175g |
| 接続端子 | USB 2.0, CAN, UART, S-bus, PPM, Micro HDMI | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI | USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Micro HDMI |
| 搭載可能カメラ(参考) | FLIR Duo Pro R Vue Proシリーズ Sony R10C Sony QX1 Sony RX0 Ⅰ/Ⅱ RedEdge-MX | FLIR Duo Pro R FLIR Vue Proシリーズ Sony R10C Sony QX1 Sony RX0 Ⅰ/Ⅱ BMMCC RedEdge-MX Workswell Wiris Pro Workswell Agro R | FLIR Duo Pro R | Wiris Security | FLIR Duo Pro R/Duo Pro/Duo FLIR Vue Pro R/Vue Pro/Vue Sony DSC-QX10 Sony DSC-QX30 Sony A5xxx シリーズ Sony A6xxx シリーズ Sony RX100 シリーズ BMMCC RedEdge RedEdge-M Workswell Wiris Pro Workswell Agro R Wiris Security Wiris Mini TeAx Fusion Keii HL2-640 | Wiris Canon 6D Mk I, Mk II Pentax Nikon D810, D800, D500 Panasonic GH3, GH4, GH5 Sony A6000, A6300, A6500 Sony A7S (mk I - II) Sony A7r (mk I - IV) Sony A9 (mkI - II) Phase One IXM50/100 UMC-S3CA FUJIFILM X-T | Phase One iXM50/100 Phase One iXM-RS150F/ iXM-RS100F (300mmレンズ除く) Corocam 8 UAV Specim AFX10/17 Workswell Wiris GIS 320 Senop HSC-2 Hyperspectral |
| 対応ドローン(フライトコントローラー) | Pixhawk / Cube Pilot / DJI A3 | Pixhawk / Cube Pilot / DJI A3 | Pixhawk / Cube Pilot / DJI A3 | Pixhawk / Cube Pilot / DJI A3 | Pixhawk / Cube Pilot / DJI A3 | Pixhawk / Cube Pilot / DJI A3 | Pixhawk / Cube Pilot / DJI A3 |
| 入力 | 14-52V | 14-52V | 14-52V | 14-52V | 15-52V | 15-52V | 15-52V |
| AUXポート | 8シグナル | 6シグナル | 6シグナル | 6シグナル | 9シグナル | 9シグナル | 9シグナル |
| HDMI対応(Micro HDMI) | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| ジンバル制御範囲 | Pan: ±325° Tilt: ±120° Roll: ±40° | Pan: ±330° Tilt: +130°から-45° Roll: ±45° | Pan: ±330° Tilt: +130°から-45° Roll: ±45° | Pan: ±330° Tilt: +130°から-45° Roll: ±45° | Pan: ±330° Tilt: ±120° Roll: ±40° | Pan: ±330° Tilt: ±120° Roll: ±40° | Pan: ±300° Tilt: ±120° Roll: ±40° |
| ジンバル単体 参考価格 | ¥213,400 | ¥239,800 | ¥198,000 | ¥286,000 | ¥258,500 | ¥267,300 | ¥357,500 |
| URL | 商品ページへ | 商品ページへ | 商品ページへ | 商品ページへ | 商品ページへ | 商品ページへ | 商品ページへ |
Gremsy
Gremsy was founded in 2011. Demand for gimbal products is high not only in the film industry but also in various other fields, including industrial applications. After releasing its first gimbal, the H10, in 2013, Gremsy has released a wide range of gimbal products, including the Gremsy H3, H6, H7, H14, and H16.
From 2013 to the present, Gremsy has continued to develop and expand its market by launching a series of high-quality products such as Gremsy T3, Gremsy S1, Pixy F, and Pixy U. In the nearly 10 years since its establishment, Gremsy has become one of the leading brands specializing in drone gimbals for various industrial applications, including surveying and mapping, solar panel inspection, construction, and agriculture.
Compare the Gremsy gimbal models here
